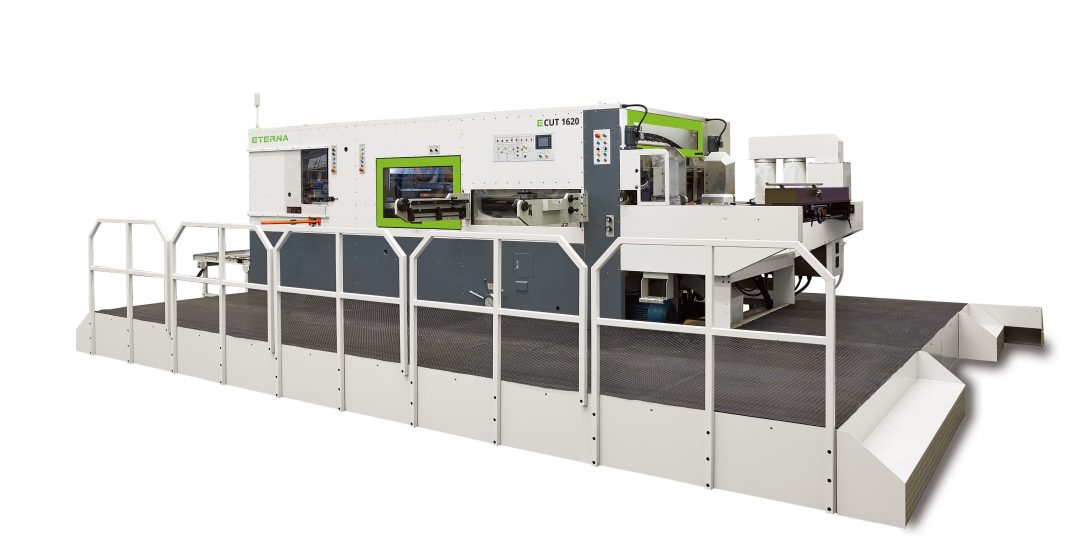

FULLY AUTOMATIC DIE CUTTING MACHINE WITH STRIPPING AND LEAD EDGE FEEDER

Corrugated Board E/ B/ C/ A/ AB flute (1~8.5mm)
Max. Sheet Size 1620 mm × 1200 mm
Min. Sheet Size 650 mm × 450 mm
Max. Mechanical Speed 5000 cycles/hour
(subject to working environment, sheet quality and operation skills, etc.)
Maximum Cutting Pressure 400 tons
Length 9980 mm
Width 5670 mm
Height 2480 mm
*incl. catwalk
Net Weight 32 tons
Gross Weight 39.5 tons
Max. Cutting Size 1600 mm × 1180 mm
Min. Gripper Waste
12 mm (subject to working environment, sheet quality and operation skills, etc.)
Min. Gripper Margin 6~12 mm
Cutting Rule Height 23.8 mm
Mobile Lower Platen Adjusting Range ±1.5mm
Total Power Required 35KW
Main Motor Power 22KW
Electrical Power 380V, 3 phase, 50HZ
transformer (as option) to be chosen by ETERNA according to client’s local voltage
Max. Air Compressor Displacement 0.7m³/min < Equipped by user>
* The maximum technical values shown cannot be applied simultaneously
* Technical specifications are subject to change without notice
